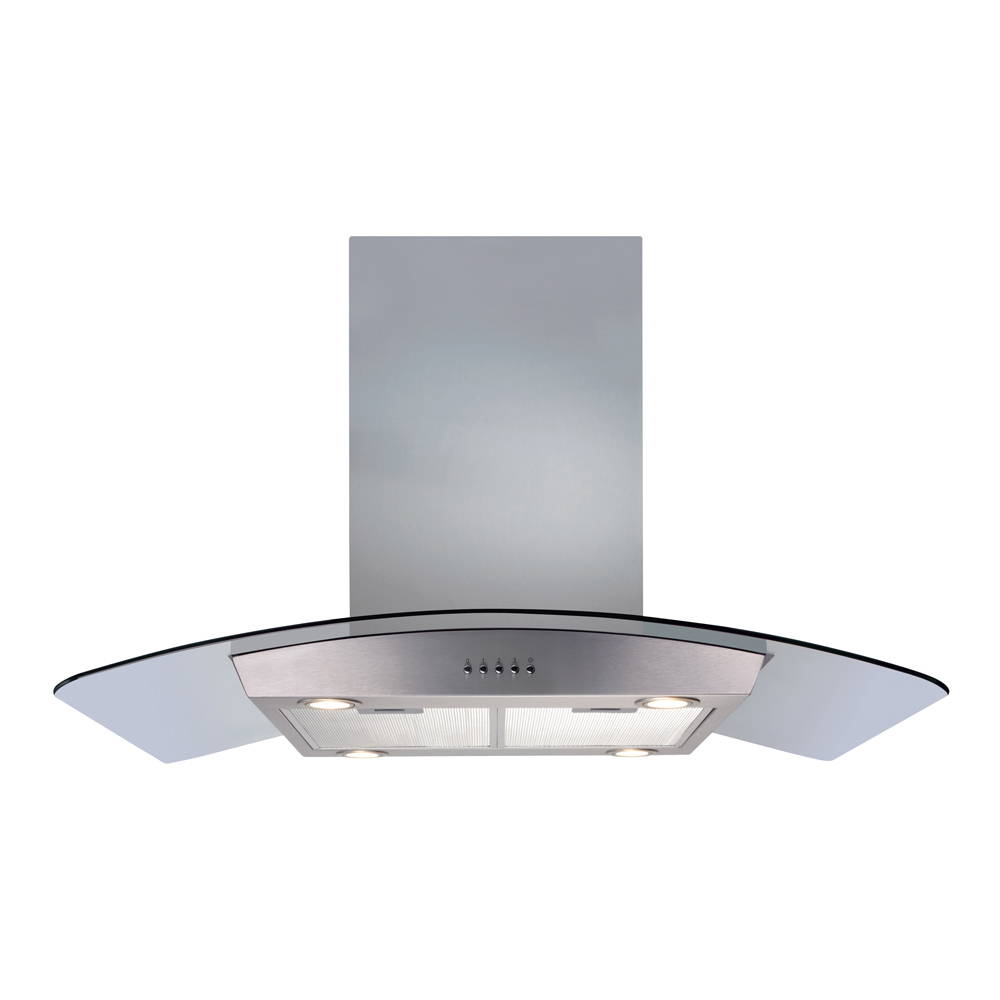

CDA ECPK90SS - 90cm Curved Glass Island Extractor, Stainless Steel

The CDA ECPK90SS is an excellent focal point for any kitchen island. The extractor has 3 speeds and push button control with 4 LED lights for optimal illumination.

Features

• Ducted/re-circulating installation
• Type of grease filter: Aluminium grease filters
• 3 speeds
• Push button control

Available in

• Stainless steel

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor (This will be determined by the type of hob installed. Please See Hob manufacturers guidance)

Technical Specification

• Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum.
• Outlet diameter: 120mm/150mm
• Power supply: 3 A
• Protection class: Class I
• Mains lead rating: H05VV-F
• Mains lead length: 1 m
• Required height over electric hobs: 600 mm (min)
• Required height over gas hobs: 700 mm (min)

Extraction Rates And Noise

• Noise level at third speed: 61 dBA
• Extraction rate at third speed: 387 m3/hr
• Noise level at second speed: 56 dBA
• Extraction rate at second speed: 322 m3/hr
• Noise level at first speed: 50 dBA
• Extraction rate at first speed: 224 m3/hr
• Noise level: 61 dBA
• Extraction rate: 387 m3/hr

Filters

• Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
• Charcoal filter code: CHA25
• Number of charcoal filters (optional): 2
• Number of grease filters: 2
• Number of layers: 4

Energy

• Energy rating: D

Optional Accessories

• Charcoal filter for re-circulation : CHA25 (pack of 2)
• Charcoal filter for re-circulation : 1
• Ducting kit code: 150mm, AED 61/63/64
• Ducting kit code: 120mm, AED 51/53/54
• Ducting kit: 1

Misc Information

• WEEE Category: 01
